BRIDGE TYPE MACHINES
Create 600

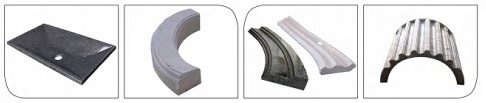

5 Axis Bridge cutting machine adopts 5 Axis linkage CNC System Control, Bus-based absolute value servo (with memory function for power off), high-precision linear guide rail, ball screw transmission, oil-immersed track structure, with multi-function, high precision, strong stability and other advantages. Its processing functions include: arbitrary-shaped lines, fan-shaped plates, wash basin and special-shaped edge profiling, etc. The equipment has multiple processing functions, wide application, small space, and simple operation. It is a great equipment for stone processing.
Technical Specifications
| Parameter | Unit | Create 600 |
|---|---|---|

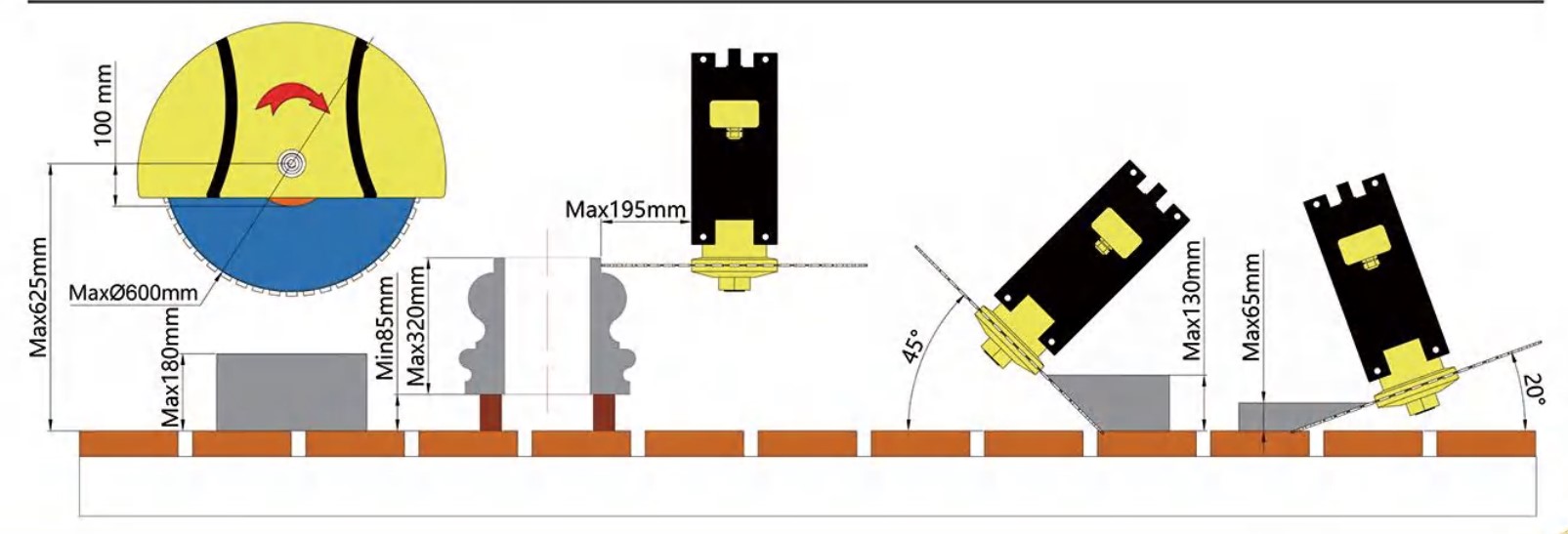

| Blade diameter range | mm | Φ350 – Φ600 |
| Max processing size | mm | 3400 × 2000 × 180 |
| Lifting stroke | mm | 500 |
| Worktable size | mm | 3400 × 2000 |
| Table tilting degree | ° | 0, 85° |
| Head rotating degree | ° | 0–360° |
| Head tilting degree | ° | 0–90° |
| Air speed | m/min | 25 |
| Repeated accuracy of positioning | mm | < 0.1mm/1000 |
| Main motor | kw | 22 (Permanent magnet motor) |
| Gross power | kw | 30 |
| Water consumption | m³/h | ~2 |
| Outline dimension | mm | 5800 × 3650 × 3900 |
| Gross weight | kg | ~8200 |
